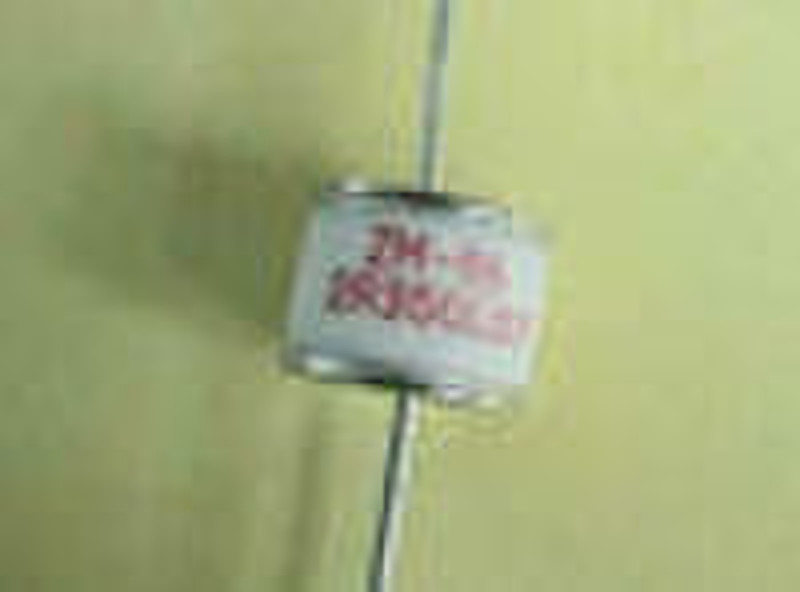

ZM86 2R90L

ZM86 2R series, voltages range from 75V to 1400V. Norminal D.C Spark-over voltage includes 75V,90V,150V,230V,350V,420V,500V,600V,800V,1000V,1400V Specifications: 1) Code: ZM 2) Outline diameter x length: Φ8 x 6mm 3) Representing 3-electrode: 2R 4) Nominal DC spark-over voltage: 90V 5) Linear distribution of lead wire: L 6) Tolerance of VS (V) %: ±20 7)Impulse spark-over voltage: ≤650 8)Impulse discharge current 8/20 µs(KA) 10 times: 10KA or 20KA 9)Impulse discharge current 10/1000µs(A/times):100/300or 200/300 10) Alternating discharge current at 50Hz for 10 times: 10Aor 20A 11)Insulation resistance Ω:≥109 12)Capacitance (PF): ≤1.5 13)Holdover voltage 52
